500 Series Studio Preamps

"Mike Amico" performing live with his Suncoast 500 Series Preamp Six-Pack Rack.

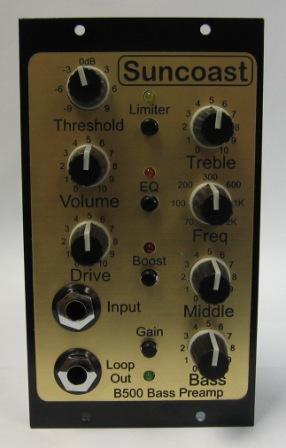

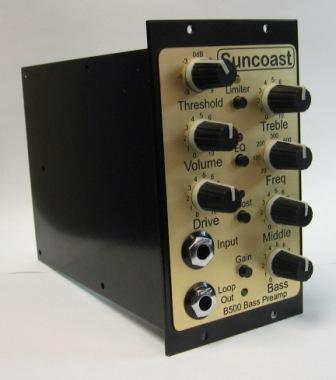

B500 Bass Preamp - MAP: $449



B500 Owners Manual        B500 Block Diagram

The Ultimate Solid-State Bass Preamp in a 500 Series Studio Module.

EQ Mode Switch for selecting either G1C or BC1 Tone curves. (Guitar/Bass)

Preamp Bypass and Boost Mode footswitchable, Compatible with Radial Omniport and Workhorse standards.

Active +/-15dB Bass, Midrange and Treble EQ with variable Midrange Frequency control.

Built in Limiter/Compressor with variable Threshold control to tame your funk'n thumb.

100% discreet analog circuit design utilizing precision surface mount technology.

Industry standard 500 Series rack power supply required for +/-16V internal operation

Aluminum Chassis with Durable Black Satin Powder Coating

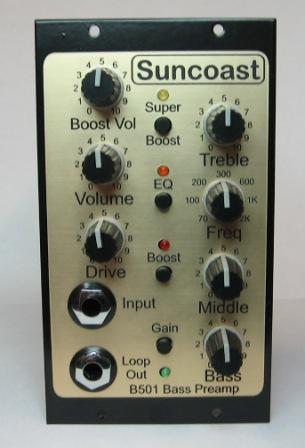

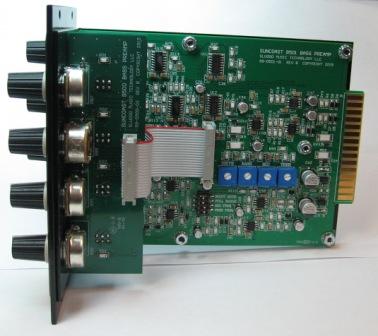

B501 Bass Preamp - MAP: $499



The Ultimate Solid-State Dual Bass Preamp in a 500 Series Studio Module.

The Boost Preamp features "Super Boost " Overdrive Technology for Monstrous, Harmonic Heavy, Bass solo's.

Internal Boost Preamp Trim pots for Drive, Bass, Midrange and Treble EQ.

4-Position Dip Switch for Boost mode, Full Range, Mid and Treble Frequency Shift.

EQ Mode Switch for selecting either Normal or Lead Bass Tone curves.

Preamp Bypass and Super Boost Mode footswitchable, Compatible with Radial Omniport and Workhorse standards.

Active +/-15dB Bass, Midrange and Treble EQ with variable Midrange Frequency control.

100% discreet analog circuit design utilizing precision surface mount technology.

Industry standard 500 Series rack power supply required for +/-16V internal operation

Aluminum Chassis with Durable Black Satin Powder Coating

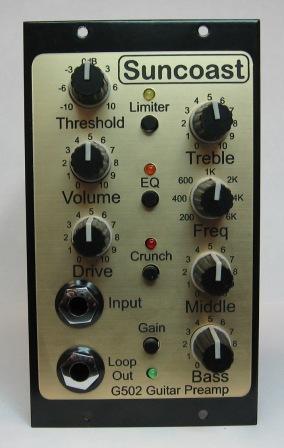

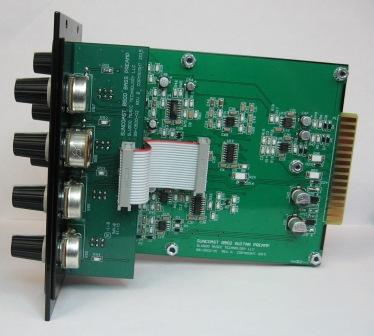

G502 Guitar Preamp - MAP: $449



The Ultimate Solid-State Rhythm Guitar Preamp in a 500 Series Studio Module.

Input Gain Switch adds +10dB for low output pickups.  Crunch Mode Switch (Gain & Treble Boost).

EQ Mode Switch shifts Bass & Treble frequencies for 2 distinct Rhythm Tone curves. (G2r)

Preamp Bypass and Crunch Mode footswitchable, Compatible with Radial Omniport and Workhorse standards.

Active +/-15dB Bass, Midrange and Treble EQ with variable Midrange Frequency control.

Built in Limiter/Compressor with variable Threshold control for tight, snappy rhythm's.

100% discreet analog circuit design utilizing precision surface mount technology.

Industry standard 500 Series rack power supply required for +/-16V internal operation

Aluminum Chassis with Durable Black Satin Powder Coating

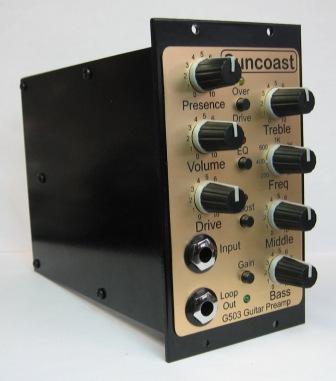

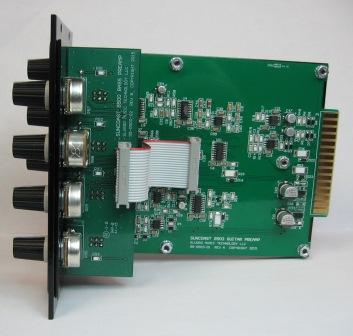

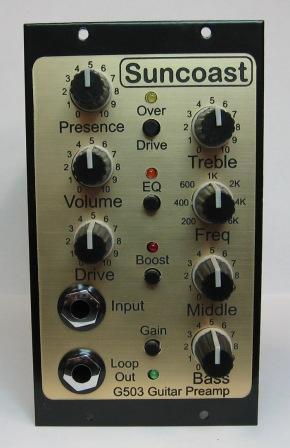

G503 Guitar Preamp - MAP: $449



The Ultimate Solid-State Lead Guitar Preamp in a 500 Series Studio Module.

Input Gain Switch adds +10dB for low output pickups.  Boost Mode Switch (Gain & Treble Boost).

EQ Mode Switch shifts Bass & Treble frequencies for 2 distinct Lead Tone curves.

Preamp Bypass and Overdrive Mode footswitchable, Compatible with Radial Omniport and Workhorse standards.

4 Band Active +/-15dB Bass, Midrange, Treble and Presence EQ with variable Midrange Frequency control.

100% discreet analog circuit design utilizing precision surface mount technology.

Industry standard 500 Series rack power supply required for +/-16V internal operation.

Aluminum Chassis with Durable Black Satin Powder Coating



Radial®, Workhorse™, Omniport™ trade names are the sole property of Radial Engineering Ltd.

Suncoast™ is a Trademark of  Sluggo Music Technology LLC

Copyright © 2011-2022  Sluggo Music Technology LLC
All Rights Reserved
Last modified: 03/29/22
